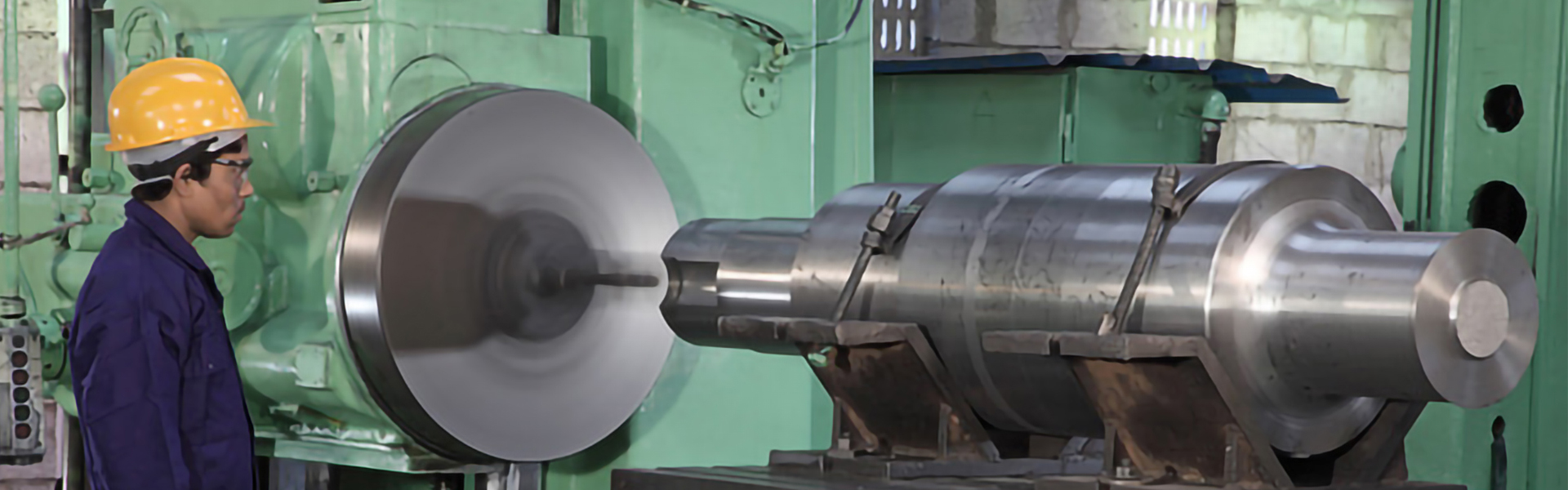

Equipped with one of the best spheroidal graphite pearlite rolls brands, Makkah Export is one of competitive pearlite ductile cast iron rolls manufacturers and suppliers in India. Spheroidal Graphite Cast Iron (S G Iron) or Ductile Iron is considered as one of the most versatile roll materials now a days. It is produced by a small proportion of magnesium added to the melt as nickel-magnesium or alternative alloy, or as pure magnesium. In S G Iron Roll, the free carbon takes the shape of spheroids or nodules, thereby eliminating the notch effect of flake graphite and improving upon the mechanical properties of the cast iron.
Pearlitic nodular rolls have high strength, good thermal properties and resistance to emergencies as well as small hardness gradient of working layer.
| Rolls Type | Hardness Shore C | C % | Si % | Mn % | Cr % | Ni % | Mo % | Mg % |
|---|---|---|---|---|---|---|---|---|
| SGPI | 50-55 | 2.90-3.60 | 1.40-2.20 | 0.40-1.00 | 0.10-0.60 | 1.50-2.00 | 0.20-0.80 | ≥0.04 |
| SGPII | 55-60 | 2.90-3.60 | 1.20-2.00 | 0.40-1.00 | 0.20-1.00 | 2.01-2.50 | 0.20-0.80 | ≥0.04 |
| SGPIII | 60-65 | 2.90-3.60 | 1.00-2.00 | 0.40-1.00 | 0.20-1.20 | 2.51-3.00 | 0.20-0.80 | ≥0.04 |
